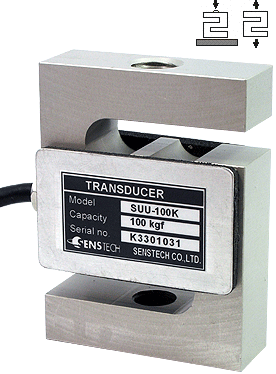

DIMENSION TABLE (unit : mm)
Capacity |
A |
B |
C |
D |
E |
F |
2kgf |
60 |
50 |
13 |
16 |
10 |
M6×1 |
5kgf |
60 |
50 |
13 |
16 |
10 |
M6×1 |
10kgf |
70 |
52 |
13 |
18 |
13 |
M6×1 |
20kgf |
70 |
52 |
13 |
18 |
13 |
M6×1 |
50kgf |
70 |
52 |
18 |
24 |
13 |
M12×1.75 |
100kgf |
70 |
52 |
18 |
24 |
13 |
M12×1.75 |
200kgf |
70 |
52 |
18 |
24 |
13 |
M12×1.75 |
500kgf |
70 |
62 |
22 |
25 |
15 |
M12×1.75 |
1tf |
70 |
62 |
22 |
25 |
15 |
M12×1.75 |
2tf |
96 |
84 |
30 |
35 |
21 |
M20×1.5 |
3tf |
120 |
96 |
35 |
41 |
30 |
M24×2 |
5tf |
120 |
96 |
40 |
44 |
30 |
M24×2 |
10tf |
165 |
140 |
60 |
66 |
46 |
M39×2 |
SPECIFICATION
Rated capacity (R.C) |
2kgf,5kgf,10kgf,20kgf,50kgf,100kgf,200kgf,500kgf, 1tf,2tf,3tf,5tf,10tf |
Rated output (R.O) |
2.0mV/V ±1% (2kgf ,5kgf : 1.5mV/V±1%) |
Nonlinearity |
0.03% of R.O. |
Hysteresis |
0.03% of R.O. |
Repeatability |
0.03% of R.O. |
Zero balance |
±2% of R.O |
Temperature effect, on rated output |
0.05% LOAD/10¡É |
Temperature effect, on zero balance |
0.1% R.O./10¡É |
Temperature range, compensated |
-10 ~ 70¡É |
Temperature range, safe |
-20 ~ 80¡É |
Terminal resistance input |
350 ±50¥Ø |
Terminal resistance output |
350 ±2¥Ø |
Insulation resistance bridge/case |
2000M¥Ø |
Excitation recommended |
10V |
Safe overload |
150% |
Cable length |
ø5 4core, 3m |
|
