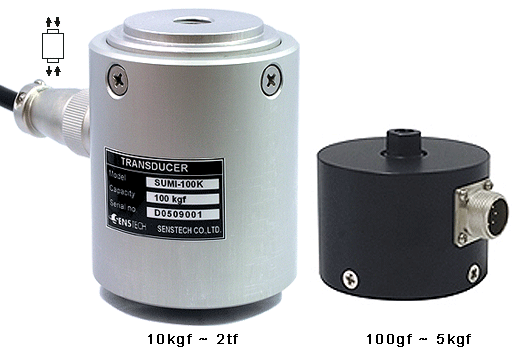

 FEATURE
다양한 용량의 인장 압축이 가능한 로드셀로서 정밀도가 높습니다. 압입하중 관리용이나 전자제품 등의 파괴 시험에 적당합니다.

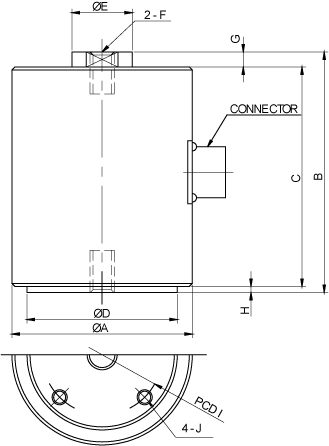

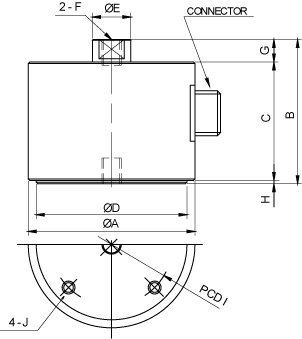

DIMENSION TABLE (unit : mm)
| Capacity |
ØA |
B |
C |
ØD |
ØE |
F |
G |
H |
I |
J |
Weight(kg) |
| 100gf |
52 |
45 |
37 |
47 |
10.5 |
M4×0.7DP8 |
7 |
1 |
38 |
4-M4 DP6 |
0.5 |
| 200gf |
52 |
45 |
37 |
47 |
10.5 |
M4×0.7DP8 |
7 |
1 |
38 |
4-M4 DP6 |
0.5 |
| 500gf |
52 |
45 |
37 |
47 |
10.5 |
M4×0.7DP8 |
7 |
1 |
38 |
4-M4 DP6 |
0.5 |
| 1kgf |
52 |
45 |
37 |
47 |
12 |
M6×1.0DP8 |
7 |
1 |
38 |
4-M4 DP6 |
0.5 |
| 2kgf |
52 |
45 |
37 |
47 |
12 |
M6×1.0DP8 |
7 |
1 |
38 |
4-M4 DP6 |
0.5 |
| 5kgf |
52 |
45 |
37 |
47 |
12 |
M6×1.0DP8 |
7 |
1 |
38 |
4-M4 DP6 |
0.5 |
| 10kgf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
1 |
| 20kgf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
1 |
| 50kgf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
1 |
| 100kgf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
1 |
| 200kgf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
1 |
| 500kgf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
1 |
| 1tf |
60 |
80 |
73 |
50 |
20 |
M12×1.75DP15 |
5 |
2 |
40 |
4-M5 DP10 |
2 |
| 2tf |
88 |
110 |
102 |
80 |
36 |
M18×1.5DP22 |
5 |
3 |
55 |
4-M6 DP12 |
3 |
SPECIFICATION
| Rated capacity (R.C) |
100gf, 200gf, 500gf
1kgf, 2kgf, 5kgf, 10kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf |
| Rated output (R.O) |
2.0mV/V ±1% (100gf ~ 5kgf = 1mV/V) |
| Nonlinearity |
0.03% of R.O. |
| Hysteresis |
0.03% of R.O. |
| Repeatability |
0.03% of R.O. |
| Zero balance |
±2% of R.O |
| Temperature effect, on rated output |
0.1% LOAD/10℃ |
| Temperature effect, on zero balance |
0.05% R.O./10℃ |
| Temperature range, compensated |
-10 ~ 50℃ |
| Temperature range, safe |
-20 ~ 80℃ |
| Terminal resistance |
350Ω ±1% |
| Insulation resistance bridge/case |
2000MΩ |
| Excitation recommended |
10V (100gf ~ 5kgf = 5V) |
| Safe overload |
120% |
| Cable length |
ø5 ±0.5mm 4core, 3m |
|
