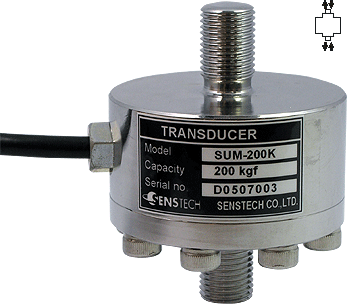

MINIATURE TENSION LOAD CELLS
SUM, SUMA

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

 FEATURE

 ½ºÅÙ·¹½º ½ºÆ¿ ÀçÁúÀ» »ç¿ëÇÏ¿© ³»½Ä¼ºÀÌ ¿ì¼öÇϸç ÀÎÀå, ¾ÐÃàÀÌ °¡´ÉÇÑ ¼ÒÇü¸ðµ¨ÀÔ´Ï´Ù. ¾ÐÀÔÇÏÁß °ü¸®¿ëÀ̳ª ´Üµ¶À¸·Î »ç¿ë½Ã È®½ÇÇÏ°Ô °íÁ¤½Ãų ¼ö ÀÖ´Â ³ª»çºÎ¸¦ °¡Áø °ÍÀÌ Æ¯Â¡ÀÔ´Ï´Ù.

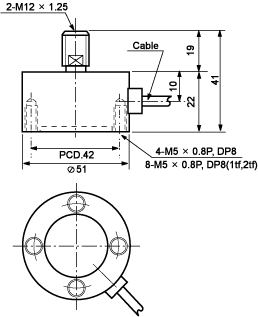

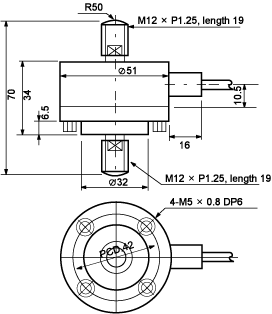

SUM (Unit : mm) SUMA (Unit : mm)

 SPECIFICATION

  SUMSUMA
Rated capacity (R.C) 50kgf,100kgf,200kgf,500kgf, 1tf,2tf 50kgf,100kgf,200kgf,500kgf, 1tf,2tf
Rated output (R.O) 2.0mV/V ±0.4% 2.0mV/V
Nonlinearity 0.15% R.O. 0.15% R.O.
Hysteresis 0.1% R.O. 0.1% R.O.
Repeatability 0.05% R.O. 0.05% R.O.
Zero balance ±2% R.O ±2% R.O
Temperature effect, on rated output 0.1% LOAD/10¡É 0.1% LOAD/10¡É
Temperature effect, on zero balance 0.05% R.O./10¡É 0.05% R.O./10¡É
Temperature range, compensated -10 ~ 70¡É -10 ~ 70¡É
Temperature range, safe -10 ~ 80¡É -10 ~ 80¡É
Terminal resistance input 350 ±50¥Ø 350 ±50¥Ø
Terminal resistance output 350 ±2¥Ø 350 ±2¥Ø
Insulation resistance bridge/case 2000M¥Ø 2000M¥Ø
Excitation recommended 10V 10V
Safe overload 150% R.C 120% R.C
Cable length ø5mm 4core, 3m ø5mm 4core, 3m
