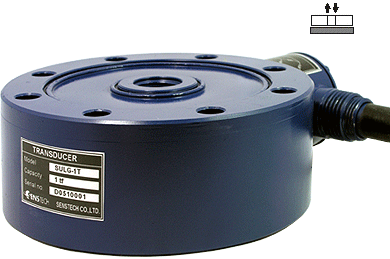

LOW PROFILE TENSION OR COMPRESSION LOAD CELLS
SUL

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

500kgf ~ 500tf



 FEATURE

 »ç¿ë ¸ñÀû¿¡ µû¶ó ÀÎÀå ¾ÐÃàÀÌ °¡´ÉÇÑ ·Îµå¼¿·Î¼­ ³ôÀº Á¤¹Ðµµ¸¦ °¡Áö¸ç, ÆíÇÏÁß¿¡ ´ëÇÑ ¿ÀÂ÷°¡ ºñ±³Àû ÀûÀº ±¸Á¶¸¦ °¡Áö°í ÀÖ½À´Ï´Ù. ¾ÐÀÔÇÏÁß °ü¸®¿ëÀ̳ª UTM ½ÃÇè±â µî¿¡ ÀûÇÕÇÕ´Ï´Ù.
 ¶ÇÇÑ ÇÏÁß point.¸¦ ³ª»ç·Î Á¶ÀýÇÒ ¼ö ÀÖ¾î °í¿ë·®ÀÇ °è·® ½Ã½ºÅÛ¿¡µµ Àû¿ë °¡´ÉÇÕ´Ï´Ù.

DIMENSION TABLE (unit : mm)

Capacity ØA B ØC D E F G H
500kgf 88 25 22 1.5 6-Ø6.5 75 108 M12×1.25
1tf 118 46 43 1.5 8-Ø9 100 153 M18×1.5
2tf 118 46 43 1.5 8-Ø9 100 153 M18×1.5
5tf 118 46 43 1.5 8-Ø9 100 153 M18×1.5
10tf 180 65 43 11 8-Ø13 155 215 M24×2
20tf 180 65 43 11 8-Ø13 155 215 M39×2
30tf 180 65 43 11 8-Ø13 155 215 M39×2
50tf 226 100 43 28.5 12-Ø18 190 266 M50×2
100tf 310 130 43 43.5 16-Ø22 260 350 M76×3
200tf 380 170 43 63 16-Ø38 315 420 M100×3
300tf 450 200 50 75 16-Ø45 365 490 M140×3
500tf 496 300 70 115 16-Ø52 420 536 M180×3

 SPECIFICATION

  SUL
Rated capacity (R.C) 500kgf, 1tf,2tf,5tf,10tf,20tf,30tf,50tf,100tf,200tf,300tf,500tf
Rated output (R.O) 2.0mV/V ±0.1%
Nonlinearity 0.05% of R.O. (300~500tf : 0.1%)
Hysteresis 0.05% of R.O. (300~500tf : 0.1%)
Repeatability 0.03% of R.O. (300~500tf : 0.05%)
Zero balance ±2% of R.O
Temperature effect, on rated output 0.05% LOAD/10¡É
Temperature effect, on zero balance 0.05% R.O./10¡É
Temperature range, compensated -10 ~ 60¡É
Temperature range, safe -10 ~ 70¡É
Terminal resistance input 350 ±5¥Ø
Terminal resistance output 350 ±3¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 150%
Cable length ø7, 4core, 3m
