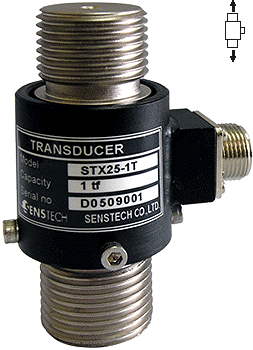

COMPRESSION & TENSION LOAD CELLS
STX25

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

 FEATURE

 ÀÎÀå,¾ÐÃàÇü ·Îµå¼¿

- ÀÎÀå ¾ÐÃàÇü ·Îµå¼¿·Î À§¾Æ·¡ ÅÇÀ¸·Î ¼³Ä¡°¡ °£Æí
- Áß°íÁß·®ÀÇ ÀÎÀå ¾ÐÃà½ÃÇè¿¡ ÀûÇÕ

1tf ~ 10tf

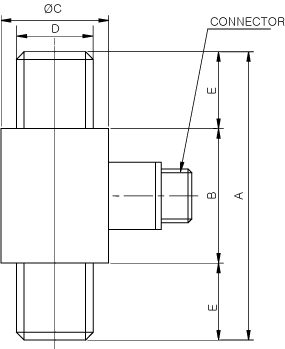

DIMENSION TABLE (unit : mm)

Capacity A B ØC D E
100kf 75 35 28 M16×1.5 20
200kf 75 35 28 M16×1.5 20
500kf 75 35 28 M16×1.5 20
1tf 75 35 28 M20×1.5 20
2tf 75 35 28 M20×1.5 20
3tf 75 35 28 M20×1.5 20
5tf 75 35 33 M24×2 20
10tf 170 100 62.5 M39×2 35
20tf 190 100 63 M39×2 50
50tf 245 105 85 M64×2 70
100tf 340 140 115 M80×2 100
200tf 390 160 150 M110×2 115
300tf 450 194 169 M125×4 128

 SPECIFICATION

Rated capacity (R.C) 100kgf, 200kgf, 500kgf, 1tf,2tf,3tf,5tf,10tf,20tf,50tf,100tf,200tf,300tf
Rated output (R.O) 1.0mV/V ±1%
Nonlinearity 0.15% of R.O.
Hysteresis 0.15% of R.O.
Repeatability 0.1% of R.O.
Creep 0.05% of R.O.
Zero balance ±1% of R.O
Temperature effect, on rated output ¡¾0.01% LOAD/10¡É
Temperature effect, on zero balance ¡¾0.02% R.O./10¡É
Temperature range, compensated -10 ~ 60¡É
Temperature range, safe -20 ~ 80¡É
Terminal resistance input 350¥Ø±5%
Terminal resistance output 350¥Ø±5%
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 120% R.C.
Cable length ø5, 4core, 3m
