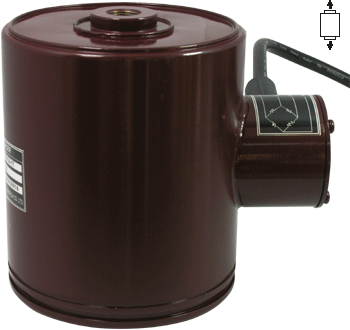

TENSION LOAD CELLS
STX

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

100kgf ~ 100tf



 FEATURE

 ³ôÀº Á¤¹Ðµµ¸¦ °¡Áø ÀÎÀåÇü ·Îµå¼¿ÀÔ´Ï´Ù.
 ¹ÐÆóÇü ¿ëÁ¢±¸Á¶·Î¼­ ¹æ¼ö ´É·ÂÀÌ IP67±ÞÀ¸·Î ¿ì¼öÇÕ´Ï´Ù.
 È£ÆÛ½ºÄÉÀÏ, ÅÊÅ©½ºÄÉÀÏ µî Á¤¹Ðµµ°¡ ¿ä±¸µÇ´Â ½Ã½ºÅÛ¿¡ »ç¿ëµË´Ï´Ù.

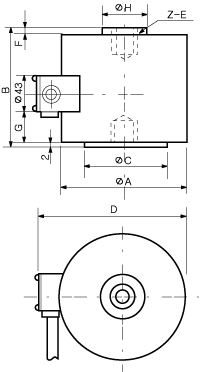

DIMENSION TABLE (unit : mm)

Capacity ØA B ØC D E F G ØH
100kgf 88 107 50 118 M12×1.25 DP15 4 25 24
200kgf 88 107 50 118 M12×1.25 DP15 4 25 24
500kgf 88 107 50 118 M12×1.25 DP15 4 25 24
1tf 88 107 50 118 M12×1.25 DP15 4 25 24
2tf 88 150 64 118 M24×2 DP30 5 42 30
3tf 88 150 64 118 M24×2 DP30 5 42 30
5tf 88 150 64 118 M24×2 DP30 5 42 30
10tf 137 220 66 167 M39×2 DP50 10 65 62
20tf 137 240 66 167 M50×2 DP65 15 75 62
50tf 213 410 130 243 M76×3 DP115 25 140 116
100tf 267 500 192 315 M100×3 DP150 25 250 196

 SPECIFICATION

  STX
Rated capacity (R.C) 100kgf,200kgf,500kgf, 1tf,2tf,3tf,5tf,10tf,20tf
Rated output (R.O) 2.0mV/V ±0.1% (50~500tf 1.5mv/v)
Nonlinearity 0.1% of R.O.
Hysteresis 0.1% of R.O.
Repeatability 0.1% of R.O.
Zero balance ±1% of R.O
Temperature effect, on rated output 0.1% LOAD/10¡É
Temperature effect, on zero balance 0.1% R.O./10¡É
Temperature range, compensated -10 ~ 60¡É
Temperature range, safe -20 ~ 80¡É
Terminal resistance input 350 ±5¥Ø
Terminal resistance output 350 ±5¥Ø
Insulation resistance bridge/case 5000M¥Ø
Excitation recommended 10V
Safe overload 150%
Cable length ø7.5mm 4core, 3m
