TENSION LOAD CELLS
STS

제품 사양 카타로그 pdf 파일
catalog

 FEATURE

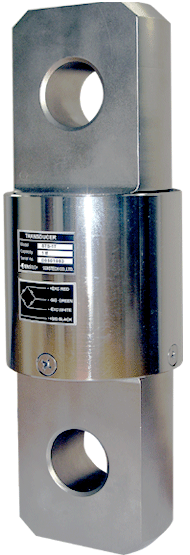

 인장형 로드셀로서 Crane weighing, Tower testing에 사용됩니다.

1tf ~ 200tf

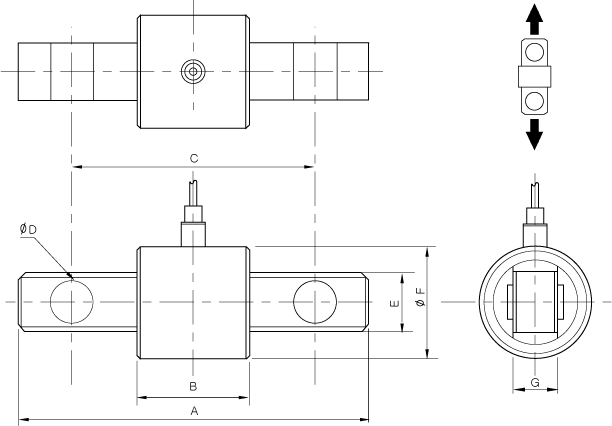

DIMENSION TABLE (unit : mm)

Capacity A B C ØD E ØF G
1tf 140 70 110 18 32 50 20
2tf 163 70 120 22 39 50 25
3tf 180 63 128 27 49 60 30
5tf 234 80 168 37 59 70 40
10tf 310 100 210 37 89 100 40
20tf 400 120 285 62 120 135 70
30tf 428 128 288 64 120 135 75
50tf 503 148 342 75 145 160 98
70tf 620 149 410 100 170 210 100
100tf 600 166 380 110 180 180 100
200tf 820 145 520 140 290 290 120

 SPECIFICATION

Rated capacity (R.C) 1tf,2tf,3tf,5tf,10tf,20tf,30tf,50tf,70tf,100tf,200tf
Rated output (R.O) 1.0mV/V ±0.5%
Nonlinearity 0.5% of R.O.
Repeatability 0.1% of R.O.
Zero balance 0.2% of R.O
Temperature effect, on rated output 0.1% LOAD/10℃
Temperature effect, on zero balance 0.05% R.O./10℃
Temperature range, compensated -10 ~ 50℃
Terminal resistance input 350 ±10Ω
Terminal resistance output 350 ±5Ω
Insulation resistance bridge/case 2000MΩ
Excitation recommended 10V
Safe overload 150%
Cable length ø7mm 4core, 10m
