my location >> Load cell >> SRTB14, SRTB15

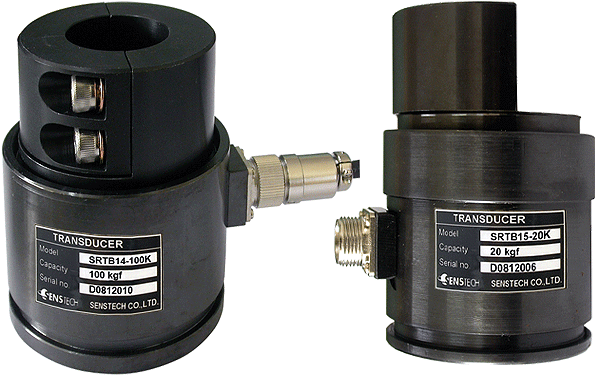

WEB TENSION LOAD CELLS
SRTB14, SRTB15



Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog



 FEATURE

 À¥ÅÙ¼Ç ·Îµå¼¿ .

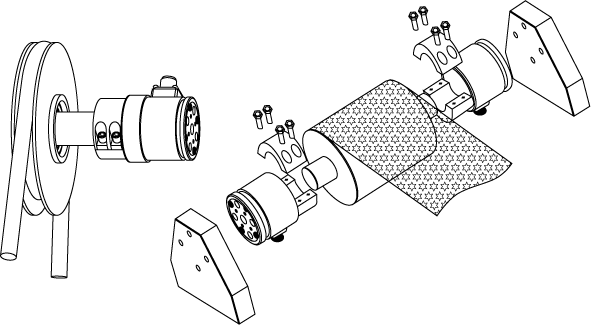

¿ÍÀ̾ ·ÑÀÇ Àå·ÂÀ» ÃøÁ¤Çϴµ¥ ÀûÇÕÇÑ ·Îµå¼¿ .
¼³Ä¡ ¿©°Ç¿¡ µû¶ó¼­ Ç¥ÁØÇ° ÀÌ¿ÜÀÇ ´Ù¾çÇÑ Á¦Ç°À» ÁÖ¹® Á¦ÀÛÇÕ´Ï´Ù.

1 ~ 5kgf (SRTB14)

10 ~ 200kgf (SRTB14, SRTB15)

Wiring Information

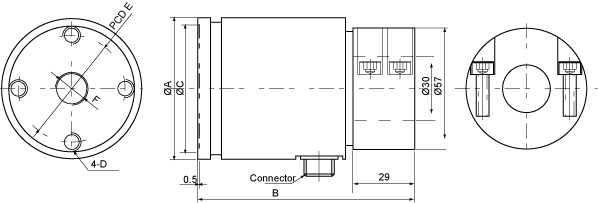

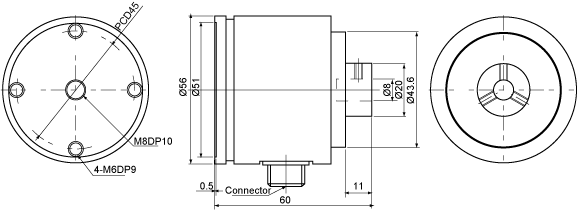

DIMENSION TABLE (unit : mm)

Model Capacity ØA B ØC D E F
SRTB14 10kgf 60 80 50 M5DP15 45 M12
20kgf 60 80 50 M5DP15 45 M12
50kgf 60 80 50 M5DP15 45 M12
100kgf 66.5 85 60 M8DP15 51 M16
200kgf 66.5 85 60 M8DP15 51 M16
SRTB15 10kgf 60 93.5 50 M5DP15 45 M12
20kgf 60 93.5 50 M5DP15 45 M12
50kgf 60 93.5 50 M5DP15 45 M12
100kgf 66.5 100 60 M8DP15 51 M16
200kgf 66.5 102 60 M8DP15 51 M16

 SPECIFICATION

Rated capacity (R.C) 10kgf, 20kgf, 50kgf, 100kgf, 200kgf
Rated output (R.O) 1.5mV/V
Nonlinearity 0.05% of R.O.
Repeatability 0.05% of R.O.
Temperature range, compensated -10 ~ 70¡É
Temperature range, safe -10 ~ 80¡É
Terminal resistance input 350¥Ø ±30¥Ø
Terminal resistance output 350¥Ø ±2¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 120% R.C
Cable length Ø5±0.3mm, 4core, 3m
