my location >> Load cell >> SMC15

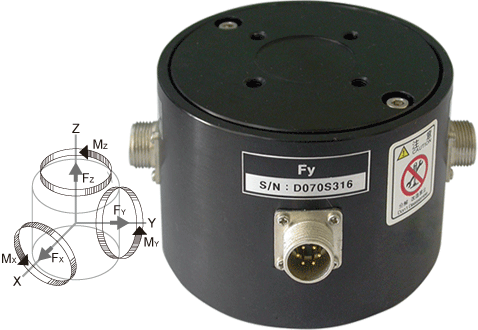

MULTI COMPONENT LOAD CELLS
SMC15

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

 FEATURE

 Fx, Fy, Fz ¼¼¹æÇâÀÇ Æ÷½º¿Í Mx, My, Mz ¼¼¹æÇâÀÇ ÅäÅ©¸¦ µ¿½Ã¿¡ ÃøÁ¤°¡´ÉÇÑ 6 ºÐ·Â ·Îµå¼¿ 2 ÃàºÎÅÍ , 6 Ãà±îÁö ´Ù¾çÇÑ ¹æÇâÀÇ Æ÷½º¿Í ¸ð¸àÆ®ÀÇ ÃøÁ¤ÀÌ °¡´É . ¼³Ä¡ ¿©°Ç¿¡ µû¶ó¼­ Ç¥ÁØÇ° ÀÌ¿ÜÀÇ ´Ù¾çÇÑ Á¦Ç°À» ÁÖ¹® Á¦ÀÛÇÕ´Ï´Ù .





DIMENSION

2-Component loadcells (Force:N,Moment:N-m)
Model Rated Capacity
Fx Fy Fz Mx My Mz
SMC15-2A 10 10 10 (30) (2) (2) (2)
20 20 20 (50) (5) (5) (5)
50 50 50 .(100) (10) (10) (10)
100 100 100 .(200) (20) (20) (20)
200 200 200 .(500) (50) (50) (50)
500 500 500 .(750) (100) (100) (100)
SMC15-2B 10 10 (30) 10 (2) (2) (2)
20 20 (50) 20 (5) (5) (5)
50 50 .(100) 50 (10) (10) (10)
100 100 .(200) 100 (20) (20) (20)
200 200 .(500) 200 (50) (50) (50)
500 500 .(750) 500 (100) (100) (100)

3-Component loadcells (Force:N,Moment:N-m)
Model Rated Capacity
Fx Fy Fz Mx My Mz
SMC15-3A 10 10 10 10 (2) (2) (2)
20 20 20 20 (5) (5) (5)
50 50 50 50 (10) (10) (10)
100 100 100 100 (20) (20) (20)
200 200 200 200 (50) (50) (50)
500 500 500 500 (100) (100) (100)
SMC15-3B 10 10 10 (2) (2) (2) 1
20 20 20 (5) (5) (5) 2
50 50 50 .(10) (10) (10) 5
100 100 100 .(20) (20) (20) 10
200 200 200 .(50) (50) (50) 20
500 500 500 .(100) (100) (100) 50
SMC15-3C 10 10 (30) 10 (2) 1 (2)
20 20 (50) 20 (5) 2 (5)
50 50 .(100) 50 (10) 5 (10)
100 100 .(200) 100 (20) 10 (20)
200 200 .(500) 200 (50) 20 (50)
500 500 .(750) 500 (100) 50 (100)

 SPECIFICATION

Rated output (R.O) 1.0mV/V
Nonlinearity 0.5% of R.O.
Hysteresis 0.5% of R.O.
Repeatability 0.3% of R.O.
Temperature effect, on zero balance 0.03% R.O./10¡É
Temperature effect, on rated output 0.03% LOAD/10¡É
Terminal resistance  350 ± 3.5¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 120% R.C
Cable length Ø3, 4core sheild cable, 3m
