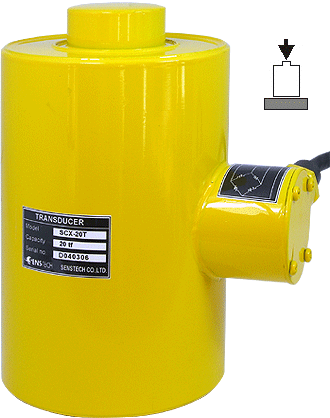

COMPRESSIONS LOAD CELLS
SCX

catalog

FEATURE

높은 정밀도를 가진 압축형 로드셀입니다.
밀폐형 용접구조로서 방수 능력이 IP67급으로 우수합니다.
호퍼스케일, 탱크스케일 등 정밀도가 요구되는 시스템에 사용됩니다.

100kgf ~ 5tf	10tf ~ 500tf

DIMENSION TABLE (unit : mm)

Capacity	øA	B	øC	D	E	F	G	H	R	øJ	øK	Weight(kg)
100kgf ~ 1tf	88	107	50	118	M12×1.25 DP15	4	25	9	25	-	24	3
2tf	88	150	66	118	M24×2 DP30	5	42	20	60	-	42	4.5
3tf	88	150	66	118	M24×2 DP30	5	42	20	60	-	42	4.5
5tf	88	150	66	118	M24×2 DP30	5	42	20	60	-	42	4.5
10tf	93	127	80	129	M12×1.75 DP20	2	42	15	140	60	38	5
20tf	93	147	80	129	M12×1.75 DP20	2	50	15	140	60	38	5.5
30tf	93	147	80	129	M12×1.75 DP20	2	50	15	140	60	38	5.5
50tf	137	165	110	170	M12×1.75 DP20	2	75	20	180	80	50	10
100tf	166	210	140	198	M16×2 DP20	2	100	20	200	100	70	28
200tf	216	250	180	246	M16×2 DP25	2	120	30	300	130	95	45
300tf	216	320	180	246	M24×3 DP35	2	160	30	600	130	120	50
500tf	256	400	238	283	M30×3.5 DP50	7	200	30	800	200	170	65

Specification

Rated capacity (R.C) 100,300,500kgf, 1,2,3,5,10,20,100,200,300,500tf

Rated output (R.O) 2.0mV/V ±0.1% (50~500tf: 1.5mV/V ±0.1%)

Nonlinearity 0.1% R.O. (200,300,500tf: 0.5% of R.O)

Hysteresis 0.1% R.O. (200,300,500tf: 0.5% of R.O)

Repeatability 0.1% R.O.

Zero balance ±1% R.O

Terminal resistance input 350 ±5Ω

Terminal resistance output 350 ±5Ω

Insulation resistance bridge/case 5000MΩ

Temperature range, compensated -10 ~ 60℃

Temperature range, safe -20 ~ 80℃

Temperature effect, on zero balance 0.1% R.O./10℃

Temperature effect, on rated output 0.1% LOAD/10℃

Excitation recommended 10V

Safe overload 150%

Cable length ø7mm 4core, 3m
