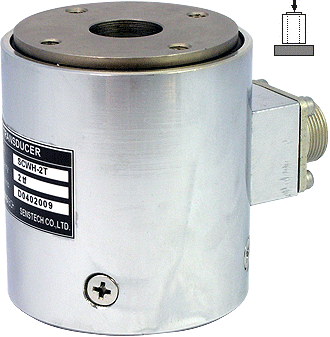

HOLLOW TYPE LOAD CELLS
SCWH

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

500kgf ~ 500tf



 FEATURE

 Áß°£¿¡ ±¸¸ÛÀÌ ¶Õ·ÁÀÖÀ¸¸ç ¾ÐÃàÇüÀ¸·Î »ç¿ëµË´Ï´Ù.
 ºñ±³Àû °¡°ÝÀÌ Àú·ÅÇÏÁö¸¸ Á¤¹Ðµµ´Â ³·½À´Ï´Ù.
 ´ëºÎºÐ Åä¸ñ¿ëÀ¸·Î ÅͳÎ, ±³·® µî ÄÜÅ©¸®Æ®ÀÇ °­µµ½ÃÇèÀ̳ª ¿ÍÀ̾î Àå·ÂµîÀÇ ½ÃÇè¿ëÀ¸·Î »ç¿ëµË´Ï´Ù.

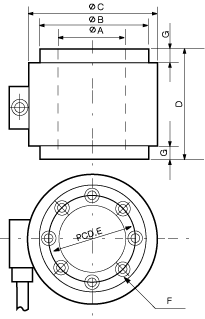

DIMENSION TABLE (unit : mm)

Capacity øA

øB

øC D

øE

F G
500kgf 10 24 40 50 18 2×4-M4 DP10 1
1tf 18 55 62 70 44 2×8-M5 DP10 2
2tf 18 55 62 70 44 2×8-M5 DP8 2
3tf 18 55 62 70 44 2×8-M5 DP10 2
5tf 18 55 62 70 44 2×8-M5 DP10 2
10tf 18 55 62 80 44 2×8-M5 DP10 2
20tf 43 68 96 80 56 2×8-M6 DP10 3
50tf 80 112 130 110 96 2×6-M8 DP10 3
100tf 85 118 158 110 102 2×6-M12 DP10 3
200tf 120 162 240 120 140 2×6-M12 DP12 3
300tf 120 179 240 120 150 2×6-M12 DP15 3
500tf 150 227 265 200 190 2×12-M12 DP15 8

 SPECIFICATION

Rated capacity (R.C) 500kgf, 1,2,3,5,10,20,50,100,200,300tf
Rated output (R.O) 1.0mV/V ±0.4%
Nonlinearity 1% of R.O.
Hysteresis 1% of R.O.
Repeatability 0.2% of R.O.
Zero balance ±2% of R.O
Temperature effect, on zero balance 0.05% R.O./10¡É
Temperature effect, on rated output 0.1% LOAD/10¡É
Temperature range, compensated -10 ~ 40¡É
Temperature range, safe -20 ~ 70¡É
Terminal resistance input 350 ±50¥Ø
Terminal resistance output 350 ±2¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 150% R.C
Cable length ø7mm 4core, 3m
