PLATFORM SCALE LOAD CELLS
SCPS



Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog



 FEATURE

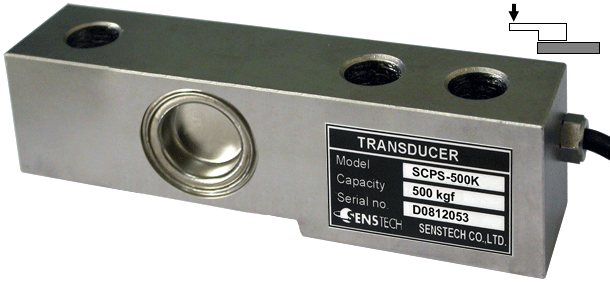

 Shear Beam Load Cell °íÁ¤¹Ðµµ ·Îµå¼¿·Î Ç÷§Æ®Æû ½ºÄÉÀÏ ¹× °¢Á¾°è·®ÀåÄ¡¿¡ »ç¿ë .
1/3000 ÀÌ»óÀÇ °íÁ¤¹Ðµµ ½ºÅ×Àη¹½º°­ »ç¿ë (17-4PH), ¹ÐÆó±¸Á¶ .

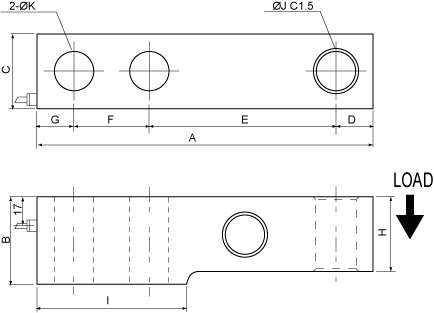

DIMENSION TABLE (unit : mm)

Capacity A B C D E F G H I ØJ ØK Weight(kg)
500kgf ~ 2tf 135 38 30 17 75 25 18 34 58 13.5 13.5 1.1
3tf ~ 5tf 170 48 38 20 85 50 15 39 79 18 18.5 2.3
9tf 203 48 50 23 95 62 23 39 110 24.5 24.5 3.5
10tf ~ 12tf 263 60 60 30 118 90 25 52 143 26 26 9

DIMENSION

Wiring Information

 SPECIFICATION

Rated capacity (R.C) 500kgf, 1 , 2, 3, 5, 9, 10, 12tf
Rated output (R.O) 2.0mV/V ±0.1%
Nonlinearity 0.03% of R.O.
Hysteresis 0.03% of R.O.
Repeatability 0.25% of R.O.
Creep (20min) 0.03% of R.O.
Zero balance ±5% of R.O
Temperature effect, on zero balance 0.05% R.O./10¡É
Temperature effect, on rated output 0.02% LOAD/10¡É
Temperature range, compensated -10 ~ 50¡É
Temperature range, safe -20 ~ 80¡É
Terminal resistance input 350 ±30¥Ø
Terminal resistance output 350 ±3¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 150% R.C
Cable length Ø5±0.3mm 4core, 3m
