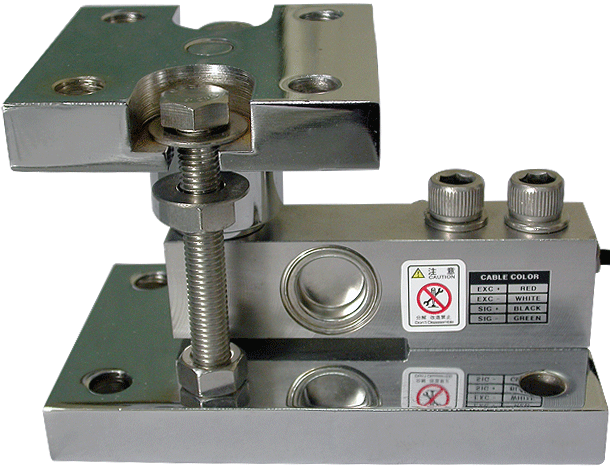

PLATFORM SCALE LOAD CELLS
SCPB32, SCBP42, SCBP52



제품 사양 카타로그 pdf 파일
catalog



 FEATURE

 SCP 로드셀과 마운팅킷트로 구성된 모듈형으로 설치가 간편 .
플랫트폼 , 호퍼 , 탱크 스케일 및 각종계량장치에 사용 .

주문사양
SCPB32 : SCP + Alloy steel Mounting kit.
SCPB42 : SCPS + Alloy steel Mounting kit.
SCPB52 : SCPS + Stainless steel Mounting kit.

SCBP32

Wiring Information

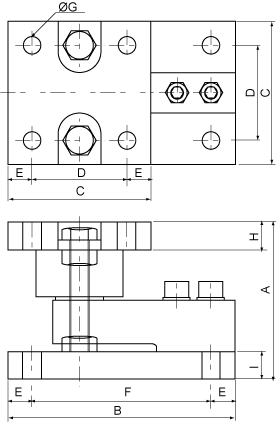

DIMENSION TABLE (unit : mm)

Capacity A B C D E F G H I Weight(kg)
50kgf ~ 300kgf 108 168 106 70 18 132 11.5 15 20 8
500kgf ~ 2tf 116 168 106 70 18 132 13.5 21 20 9
3tf ~ 5tf 145 225 150 110 20 185 18 25 30 16

 SPECIFICATION

Rated capacity (R.C) 300, 500kgf, 1, 2, 3, 5tf
Rated output (R.O) 2.0mV/V
Nonlinearity 0.02% of R.O.
Hysteresis 0.02% of R.O.
Repeatability 0.01% of R.O.
Creep 0.02% of R.O.
Zero balance ±1% of R.O
Temperature effect, on zero balance 0.05% R.O./10℃
Temperature effect, on rated output 0.02% LOAD/10℃
Temperature range, compensated -10 ~ 70℃
Temperature range, safe -20 ~ 80℃
Terminal resistance input 350Ω ±1%
Terminal resistance output 350Ω ±1%
Insulation resistance bridge/case 2000MΩ
Excitation recommended 10V
Safe overload 150% R.C
Cable length Ø5, 4core, 5m
