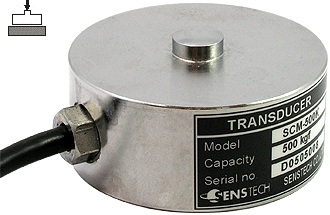

MINIATURE COMPRESSION LOAD CELLS
SCM

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

50kgf ~ 10tf



 FEATURE

 ¾ÐÃàÇüÀÌ¸ç ¼ÒÇüÀÎ Àú°¡°Ý Á¦Ç°À¸·Î¼­ Áß±Þ Á¤µµÀÇ Á¤¹Ðµµ¸¦ °¡Áö°í ÀÖÀ¸¸ç, ¼³Ä¡°¡ Æí¸®ÇÕ´Ï´Ù.
 ´Ù¼ö°³¸¦ »ç¿ëÇÏ¿© È£ÆÛ½ºÄÉÀÏÀ̳ª ÅÊÅ©½ºÄÉÀÏ, ¹Í½ÌÇ÷»Æ® µî¿¡ »ç¿ëµÇ¾îÁö±âµµ ÇÏ¸ç ½Ç¸°´õ µîÀ¸·Î ´©¸£´Â ÈûÀÇ ÃøÁ¤ÀÌ ÇÊ¿äÇÑ °÷¿¡ »ç¿ëµË´Ï´Ù.

DIMENSION TABLE (unit : mm)

Capacity ØA B C D E F G H ØI
50kgf ~ 2tf 51 26 R50 42 M5×0.8DP6 15 10.5 22 10
5tf 88 42 R150 72 M6×1DP6 23 17 37 18
10tf 88 47 R150 72 M6×1DP6 23 17 42 18

 SPECIFICATION

Rated capacity (R.C) 50,100,200,500kgf, 1,2,5,10tf
Rated output (R.O) 2.0mV/V ±0.1%
Nonlinearity 0.15% of R.O.
Hysteresis 1% of R.O.
Repeatability 0.05% of R.O.
Zero balance ±2% of R.O
Temperature effect, on zero balance 0.05% R.O./10¡É
Temperature effect, on rated output 0.1% LOAD/10¡É
Temperature range, compensated -10 ~ 70¡É
Temperature range, safe -10 ~ 70¡É
Terminal resistance input 350 ±50¥Ø
Terminal resistance output 350 ±2¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 150% R.C
Cable length Ø5mm 4core, 3m
