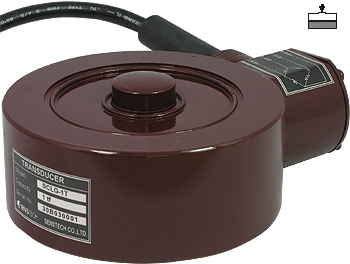

LOW PROFILE COMPRESSIONS LOAD CELLS
SCL

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

 FEATURE

 ³ôÀº Á¤¹Ðµµ¸¦ °¡Áø ¾ÐÃàÇü ·Îµå¼¿·Î ³ôÀÌ°¡ ³·À¸¸ç, ¹ÐÆóÇü ±¸Á¶·Î¼­ ¹æ¼ö ´É·ÂÀÌ IP67±ÞÀ¸·Î ¿ì¼öÇÕ´Ï´Ù.
 È£ÆÛ½ºÄÉÀÏ, ÅÊÅ©½ºÄÉÀÏ µî Á¤¹Ðµµ°¡ ¿ä±¸µÇ´Â ½Ã½ºÅÛ¿¡ »ç¿ëµË´Ï´Ù.

500kgf ~ 500tf

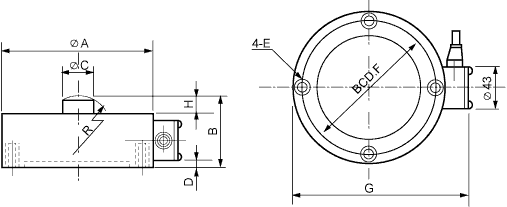

DIMENSION TABLE (unit : mm)

Capacity ØA B ØC D E ØF G H R
500kgf 88 30 16 1.5 M6×1 DP10 70 119 5 60
1tf 98 46 22 1.5 M8×1.25 DP12 80 129 7 60
2tf 98 46 22 1.5 M8×1.25 DP12 80 129 7 60
5tf 98 46 22 1.5 M8×1.25 DP12 80 129 7 60
10tf 118 65 24 11 M8×1.25 DP12 98 149 7 80
20tf 157 65 34 11 M8×1.25 DP12 120 188 10 100
50tf 187 75 50 16 M12×1.75 DP12 150 218 10 140
100tf 278 120 74 37 M12×1.75 DP12 240 309 15 160
200tf 320 170 100 63.5 M16×2 DP20 270 351 15 250
300tf 396 195 140 68.5 M16×2 DP20 330 427 15 320
500tf 430 200 150 68.5 M20×2.5 DP25 360 461 20 320

 SPECIFICATION

  SCL
Rated capacity (R.C) 500kgf, 1,2,5,10,20,50,100,200tf
Rated output (R.O) 2.0mV/V ±0.1%
Nonlinearity 0.05% R.O. (100,200tf : 0.1%)
Hysteresis 0.05% R.O. (100,200tf : 0.1%)
Repeatability 0.03% R.O. (100,200tf : 0.05%)
Zero balance ±2% R.O
Terminal resistance input 350 ±30¥Ø
Terminal resistance output 350 ±3¥Ø
Insulation resistance bridge/case 2000M¥Ø
Temperature range, compensated -10 ~ 60¡É
Temperature range, safe -10 ~ 70¡É
Temperature effect, on zero balance 0.05% R.O./10¡É
Temperature effect, on rated output 0.05% LOAD/10¡É
Excitation recommended 10V
Safe overload 150% R.C
Cable length Ø7mm 4core, 3m
