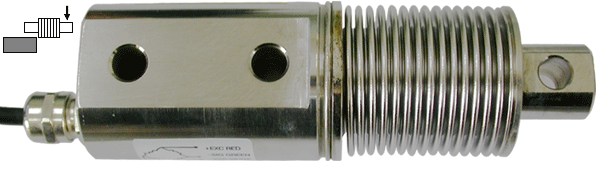

BEAM LOAD CELLS(bellows type)
SCBC



Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog



 FEATURE

 ½ºÅ×Àη¹½º º§·Î¿ìÁ ¿ëÁ¢ÇÏ¿© ³»È¯°æ¼ºÀÌ ¿ì¼öÇÑ °íÁ¤¹Ðµµ ·Îµå¼¿ .
°í°­µµ ½ºÅ×Àη¹½º°­ »ç¿ëÇÏ°í ¿ÏÀü ¹ÐÆó±¸Á¶ .
¹ÐÆóµÈ °ø°£À̳ª »ç¿ëȯ°æÀÌ ³ª»Û °÷¿¡¼­µµ »ç¿ë°¡´É .

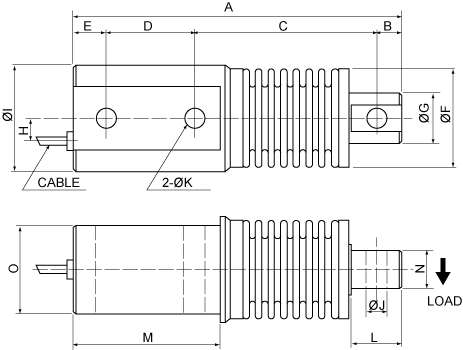

DIMENSION TABLE (unit : mm)

Capacity A B C D E F G H I J K L M N O Weight(kg)
10 ~ 100kgf 130 10 72 35 13 39 20 9 42 8.5 8.5 20 58 17 35 1.0
200 ~ 500kgf 200 20 120 45 15 50 29 14 52 12 14 40 80 25 40 1.8

100kgf ~ 500kgf

Wiring Information

 SPECIFICATION

Rated capacity (R.C) 10, 20, 50, 100, 200, 500kgf
Rated output (R.O) 2.0mV/V ±0.5%
Nonlinearity 0.03% of R.O.
Hysteresis 0.02% of R.O.
Repeatability 0.02% of R.O.
Zero balance ±1% of R.O
Temperature effect, on zero balance 0.02% R.O./10¡É
Temperature effect, on rated output 0.02% LOAD/10¡É
Temperature range, compensated -10 ~ 70¡É
Temperature range, safe -20 ~ 80¡É
Terminal resistance input 350 ±50¥Ø
Terminal resistance output 350 ±5¥Ø
Insulation resistance bridge/case 2000M¥Ø
Excitation recommended 10V
Safe overload 150% R.C
Cable length Ø5mm 4core, 3m
