BENDING BEAM LOAD CELLS
SCB2,4,5,6

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

 FEATURE

  ¾Ë·ç¹Ì´½ ¼ÒÀç·Î¼­ ÀüÀÚÀú¿ï¿¡ »ç¿ëµÇ´Â ·Îµå¼¿ÀÌ¸ç °¡°ÝÀÌ Àú·ÅÇÏ°í Á¤¹Ðµµ°¡ ¸Å¿ì ³ô½À´Ï´Ù.
 °æ·®À¸·Î »ç¿ëÀÌ Æí¸®ÇÏ°í ¿ë·®ÀÌ ´Ù¾çÇÏ¸ç ¹«°Ô ÃøÁ¤¿ëÀ¸·Î ÀûÇÕÇÕ´Ï´Ù

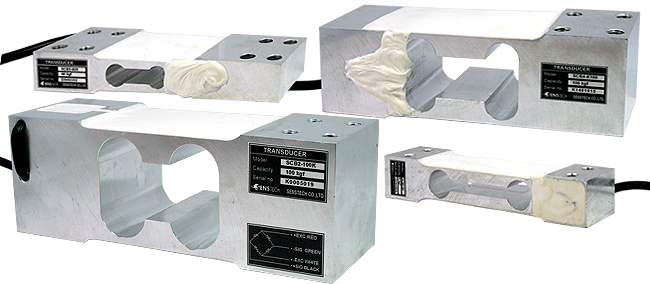

SCB2 60,100,250,300kgf (unit : mm)

SCB5 30,50,100,150,300kgf (unit : mm)

SCB4 300kgf, 500kgf (unit : mm)

SCB6 6,10,25,30kgf (unit : mm)



SPECIFICATION

SCB2 SCB4 SCB5 SCB6
Rated capacity (R.C) 60, 100, 250, 300kgf 300kgf, 500kgf 30,50,100,150,300kgf 6, 10, 25, 30kgf
Rated output (R.O) 2.0mV/V ±10% 2.0mV/V ±10% 1.5mV/V ±10% 2.0mV/V ±10%
Nonlinearity 0.02% R.O. 0.02% R.O. 0.02% R.O. 0.02% R.O.
Hysteresis 0.02% R.O. 0.02% R.O. 0.02% R.O. 0.02% R.O.
Repeatability 0.02% R.O. 0.02% R.O. 0.02% R.O. 0.02% R.O.
Creep 0.03% R.O. 0.03% R.O. 0.03% R.O. 0.03% R.O.
Zero balance ±5% R.O ±5% R.O ±5% R.O ±5% R.O
Terminal resistance input 420 ±20¥Ø 420 ±20¥Ø 420 ±20¥Ø 420 ±20¥Ø
Terminal resistance output 350 ±2¥Ø 350 ±2¥Ø 350 ±2¥Ø 350 ±2¥Ø
Insulation resistance 2000M¥Ø 2000M¥Ø 2000M¥Ø 2000M¥Ø
Temperature range, compensated -10 ~ 50¡É -10 ~ 50¡É -10 ~ 50¡É -10 ~ 50¡É
Temperature range, safe -10 ~ 50¡É -10 ~ 50¡É -10 ~ 50¡É -10 ~ 50¡É
Temperature effect, on zero balance 0.05% R.O./10¡É 0.05% R.O./10¡É 0.05% R.O./10¡É 0.05% R.O./10¡É
Temperature effect, on rated output 0.02% LOAD/10¡É 0.02% LOAD/10¡É 0.02% LOAD/10¡É 0.02% LOAD/10¡É
Excitation recommended 10V 10V 10V 10V
Safe overload 150% R.C. 150% R.C. 150% R.C. 150% R.C.
Cable length ø7 4core, 3m ø7 4core, 3m ø7 4core, 3m ø5 4core, 3m
