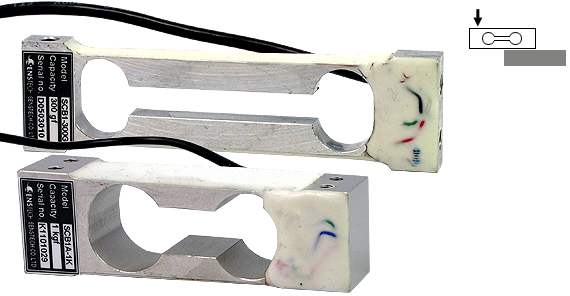

BENDING BEAM LOAD CELLS
SCB1/SCB1A

제품 사양 카타로그 pdf 파일
catalog

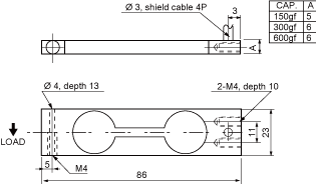

SCB1 150gf, 300gf, 600gf (unit : mm)

SCB1A 1kgf, 2kgf, 3kgf (unit : mm)

SCB1 1kgf ~ 3kgf (unit : mm)

SCB1 5kgf ~ 50kgf (unit : mm)



SPECIFICATION

Rated capacity (R.C) 150gf, 300gf, 600gf 1, 2, 3Kgf 5, 10, 15, 30, 50Kgf
Rated output (R.O) 1.2mV/V ±1% 1mV/V ±1% 1.5mV/V ±1%
Nonlinearity 0.02% R.O. 0.02% R.O. 0.02% R.O.
Hysteresis 0.02% R.O. 0.02% R.O. 0.02% R.O.
Repeatability 0.02% R.O. 0.02% R.O. 0.02% R.O.
Creep 0.03% R.O./20min 0.03% R.O./20min 0.02% R.O./20min
Zero balance ±5% R.O ±5% R.O ±5% R.O
Terminal resistance input 420 ±30Ω 420 ±30Ω 420 ±30Ω
Terminal resistance output 350 ±2Ω 350 ±2Ω 350 ±2Ω
Insulation resistance 2000MΩ 2000MΩ 2000MΩ
Temperature range, compensated 0 ~ 40℃ -10 ~ 50℃ -10 ~ 50℃
Temperature range, safe -10 ~ 50℃ -10 ~ 50℃ -10 ~ 50℃
Temperature effect, on zero balance 0.03% R.O./10℃ 0.03% R.O./10℃ 0.03% R.O./10℃
Temperature effect, on rated output 0.02% LOAD/10℃ 0.02% LOAD/10℃ 0.02% LOAD/10℃
Excitation recommended 10V DC 10V DC 10V DC
Safe overload 150% R.O 150% R.O. 150% R.O.
Cable length ø3, core shield cable,
 1.5m
ø3, core shield cable,
 1.5m
ø5, core shield cable,
 1.5m
