LOAD CELLS ACCESSORY
SUMMING BOX

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

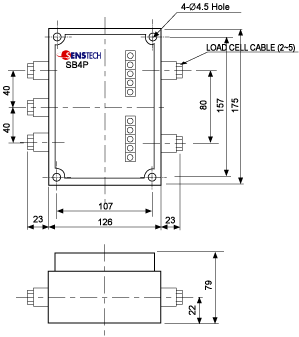

SB4P

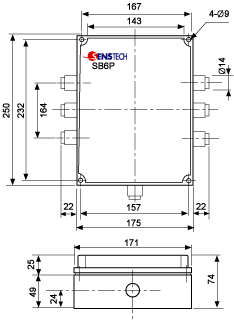

SB6P



SPECIFICATION

  SB4P SB6P
Load cell 2 to 4 single cell 2 to 6 single cell
Trimmg Individual cell, excitation trim 0 ~ 20 ohms Individual cell, excitation trim 0 ~ 20 ohms
Potentiometer 20 ohms, 20- turn cerment 100ppm 20 ohms, 20- turn cerment 100ppm
Cable Fittng input Ø5 ~ Ø8 Ø5 ~ Ø10
output Ø5 ~ Ø10 Ø5,  Ø9 ~ Ø12
Enclosure ABS(Acrylnitrile Butadiene Styrene) cast, IP67 ABS(Acrylnitrile Butadiene Styrene) cast, IP67
