FEATURE

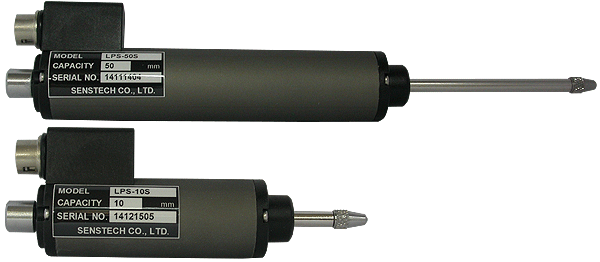

Linear Position Sensor (10mm ~ 100mm)
CompactÇÑ Çü»óÀ¸·Î Ãë±ÞÀÌ ¿ëÀÌÇÑ º¯À§°èÀÌ´Ù. DC Ãâ·Â ¹æ½ÄÀÌ¸ç ³»ºÎ º¼·ýÀúÇ×ÀÇ º¯È·Î ÀÔ·ÂÀü¾Ð Ãâ·ÂÀü¾Ðºñ·Î Ãâ·ÂµÈ´Ù. Á¤ÀûÃøÁ¤Àº ¹°·Ð µ¿ÀûÃøÁ¤¿¡µµ »ç¿ëÇÒ ¼ö ÀÖ´Ù.
- ¹Ýº¹¼º ¿ì¼ö - Ãë±ÞÀÌ ¿ëÀÌ
SPECIFICATION
Rated capacity |
10, 30, 50 mm |
80, 100 mm |
Non-linearity |
± 0.3% R.O. |
± 0.4% R.O. |
Hysteresis |
± 0.15% R.O. |
± 0.1% R.O. |
Non-repeatability |
± 0.15% R.O. |
± 0.1% R.O. |
Total resistance (±20%) |
2§Ú(stroke5~10mm) 5§Ú(stroke30~100mm) |
Temperature range compensated |
-10¡É ~ 70¡É |
Temperature range safe |
0¡É ~ 60¡É |
Excitation Voltage |
10V DC |
Cable |
Ø4 shield 3m |

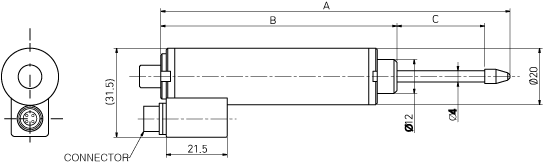

DIMENSIONS (unit : mm)
Stroke |
A |
B |
C |
10 mm |
83.5 |
63.5 |
Useful Stroke +0.5 / -0 |
30 mm |
123.5 |
83.5 |
Useful Stroke +0.5 / -0 |
50 mm |
163.5 |
103.5 |
Useful Stroke +0.5 / -0 |
80 mm |
245 |
155 |
Useful Stroke +0.5 / -0 |
100 mm |
265 |
155 |
Useful Stroke +0.5 / -0 |
CIRCUIT DIAGRAM |
![](pic/d-lps6.gif) |
|
TIP TYPE
T-1 (STANDARD) |
T-2 (OPTION) |
|
|
|
BRACKET
![](pic/d-lps7.gif)

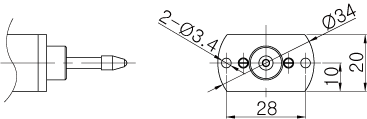

SPECIAL (FLANGE TYPE)
![](pic/d-lps3.gif)
|
