POTENTIOMETER TYPE
KTR

Á¦Ç° »ç¾ç īŸ·Î±× pdf ÆÄÀÏ
catalog

FEATURE

»ê¾÷ÇöÀå¿¡¼­ »ç¿ëÀÌ °¡´ÉÇÑ Àú°¡Çü ½ºÇÁ¸µ º¹±Í ¼¾¼­.

- °íÁ¤µµ
- °íÃâ·Â
- ¹Ýº¹¼º ¿ì¼ö
- Ãë±ÞÀÌ ¿ëÀÌ
- DC Ãâ·Â
- 5V or 10V ±ÇÀå

SPECIFICATION

KTR-B ball bearing gauge head 10 15 25 50 75 100
Total Electrical Travel(T.E) mm 12 17 27 52 77 102
Actlve Electrical Travel(A.E) mm 10 15 25 50 75 100
Resistance ¡¾ 20% k¥Ø 1.0 1.0 1.0 5.0 5.0 5.0
Mechanical Travel (M.T) mm 17 22 32 57 82 103
Output Voltage Divider
Temperature Range ¡É -50 ~ +120
Dimensions A mm 53 58 68 93 118 143
Total length mm 118 128 148 198 253 297

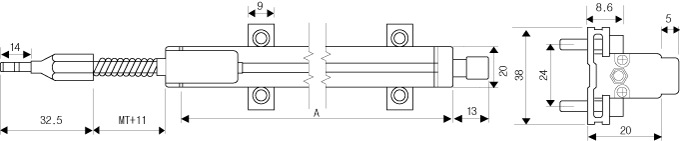

DIMENSION (unit : mm)


CIRCUIT DIAGRAM
