LVDT

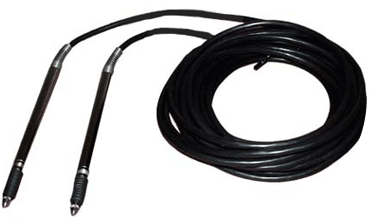

DP

제품 사양 카타로그 pdf 파일
catalog

SPECIFICATION

DP-S4 / DP-S4V
DP-10 / DP-10V
DP-25
Moving stroke (mm) 4.95 10.45 26
Measuring Range (mm) 4 8 16
Repeatability (μm) 0.1 0.5 1.0
Linearity error (%) 0.1 (±1.00mm) 0.1 (±3.00mm) 0.3
Force At Eletrical Zero (g) 4 ~ 90 30 ~ 80 180
Guiding System Ball bearing Ball bearing Ball bearing
Temperature range (℃) 0 ~ 40 0 ~ 40 0 ~ 40
Cable length (m) 2.2 3 3
Outside Diameter (kHz) 8 8 Ø15
Frequency response (kHz) 13 13 16

DP-** : Spring Type
DP-**V : Vacum Type

DIMENSION (unit : mm)

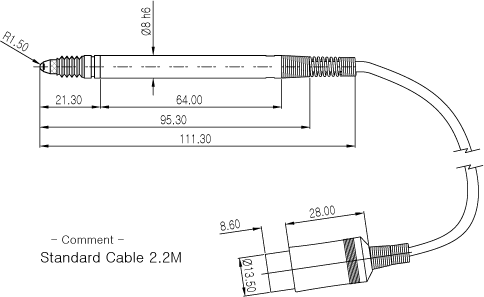

DP-S4

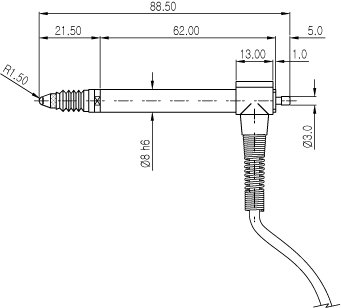

DP-S4V

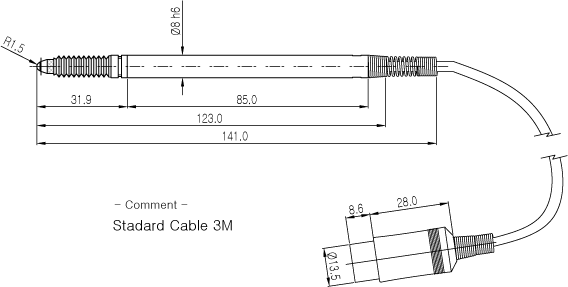

DP-10

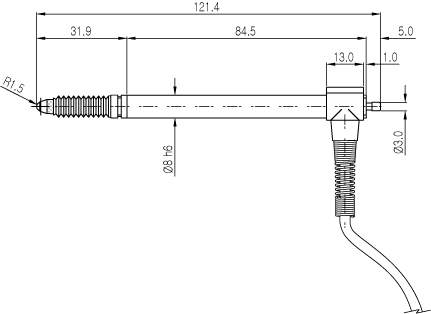

DP-10V

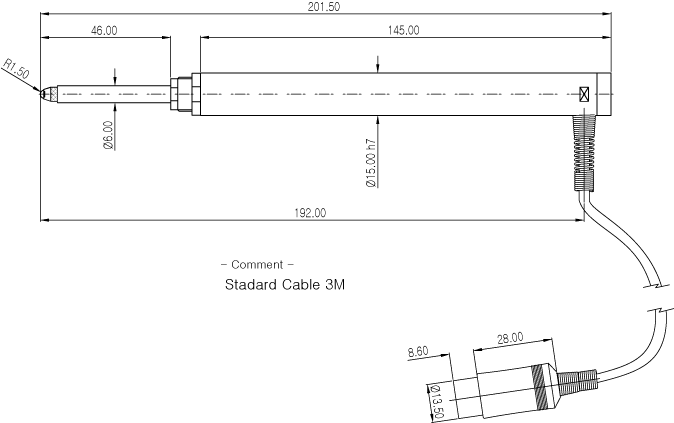

DP-25
